1, Summarize

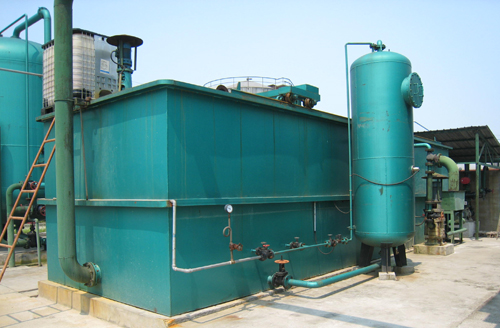

Smooth streaming dissolved gas floating machine sewage treatment industry is a common solid-liquid separation equipment, can effectively remove the suspended solids, grease, sewage glue kind material, is the main equipment of sewage treatment.
2, Structure characteristics
Equipment body steel structure is rectangle. The main components of the dissolved by air compressor, air compressor, soluble tank, rectangle body, floating system, scraping mud system, etc. Main characteristics are as follows:
Dissolve tank have bubbles, small size for 20 to 40 um, adhesion floc properties, strong, can achieve good floating effect.
Flocculant less usage and lower cost.
Operating rules is easy to grasp, water easy control, management simple.
Equipped with reverse wash system is not easy jam, release.
3, working principle
Soluble produced water tank dissolved vapor, dissolved gas water through the release of pressure to stay with the release of the water. Dissolved in water air released from the water, forming um 20 to 40 small fine bubble, with tiny bubbles in dirty, the proportion of the suspended material combined with water, and gradually less than float to the surface form scum. The water with scraper system, will blow into the sludge pond scum. The water from the overflow tank into QingShuiChi.
4, Scope
Used to remove the suspended solid waste, oil and all kinds of colloidal material, such as: petrochemical, coal mine, papermaking, printing, dyeing, slaughtering, brewing, and other industrial enterprises of the sewage treatment.
Used for recycling useful substance, such as: in the white paper tiny fiber collection.
